Sometimes, it can be handy to export the model as an XML file. This allows you to use whatever (XML) tool you like to transform a model or edit information sources.
Importing XML into a model will replace that model.
Import and Export
NOTE: Not all licenses allow importing and exporting a model to XML.
Use the import XML and export XML buttons from the Ribbon.
Export via XML

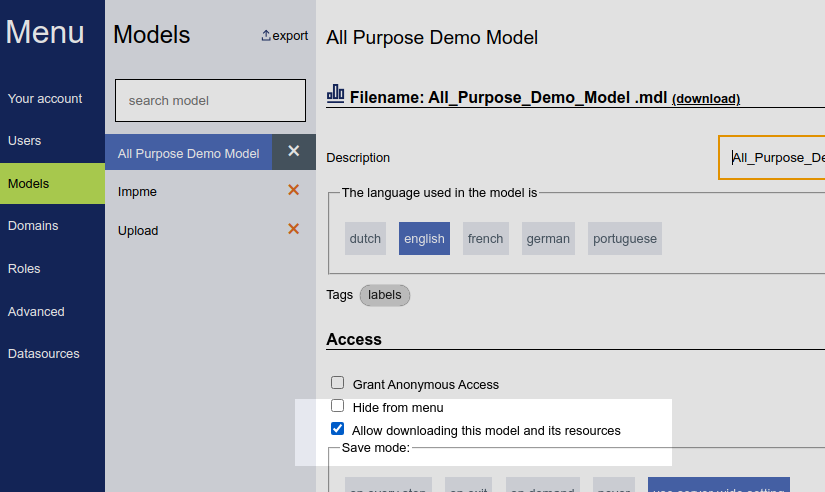

A prerequisite for exporting a model is that it be downloadable. Use the webadmin (See User Account menu on the top right > More settings) to manage that.
Tick the allow download button

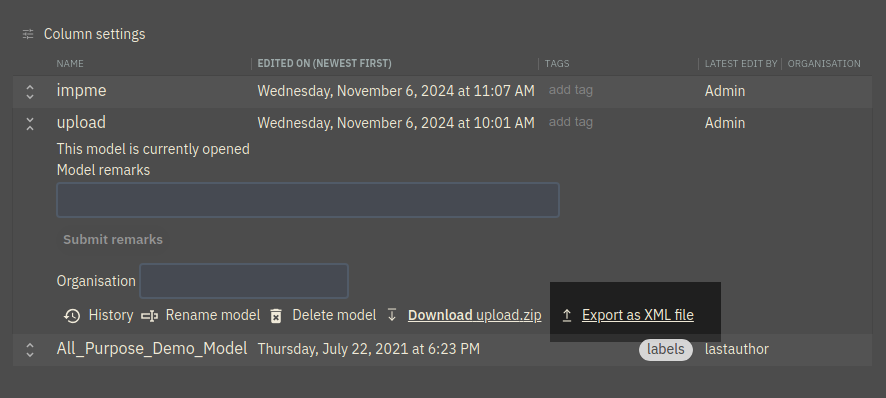

Once a model has been set to be downloadable, you can export it via the models menu:
Export as XML
Import an XML into an open model
In order to import XML, you have got to have a model open. The XML will be imported into that model. If your model does not yet exist on your Expertsystemen server, just create and save a new model first. You will use that empty model to import the XML into.

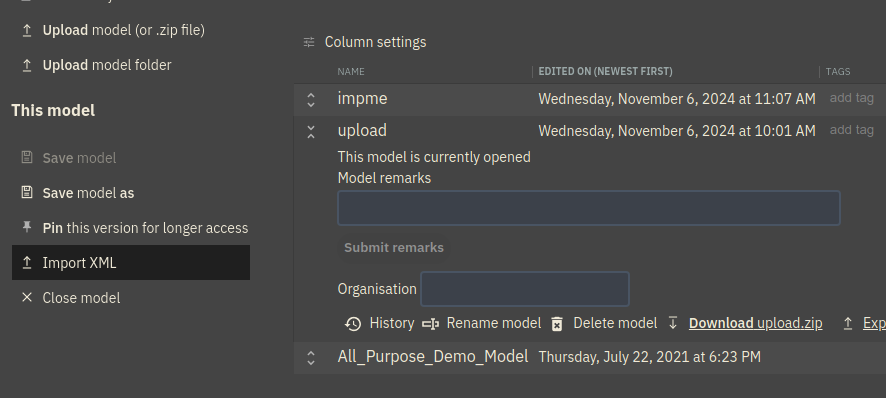

If a model is open, the menu under ‘This model’, in the File tab, will show an item called ‘Import XML’:
Import XML item

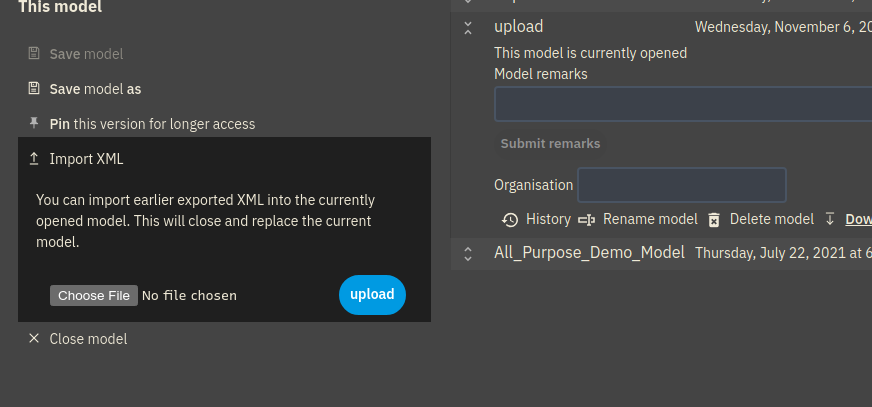

Choose the file you exported earlier, and upload it with the Upload button:
Upload XML file

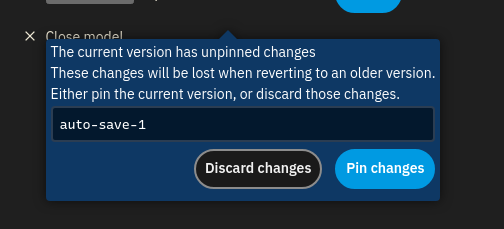

In case the current version of the open model has unpinned changes, pinning the model will first be offered.
Optional pin action

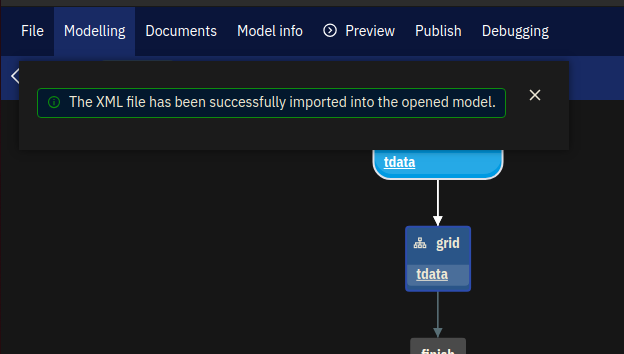

After either discarding or pinning the changes, the model will be uploaded and the imported model will be reopened:
